The Basics of Foundation Construction: Types of Foundations and the Importance of Soil Testing and Site Preparation

Building a house or any structure starts from the ground up—literally. One of the most critical steps in construction is laying the foundation. This article will break down the basics of foundation construction, focusing on the types of foundations and the importance of soil testing and site preparation. Understanding these fundamentals will help you appreciate the work that goes into creating a strong, stable base for any building.

Foundation construction is a critical aspect of building any structure, serving as the essential support system that transfers the load from the building to the ground. A well-designed foundation ensures stability, durability, and safety, preventing settlement and structural failures over time. The selection of the appropriate foundation type is influenced by various factors, including soil conditions, the weight of the building, local environmental conditions, and budget considerations. This introduction explores the diverse types of structural foundations, highlighting their unique characteristics and applications in construction.

Foundations are generally categorized into two main groups: shallow and deep foundations. Shallow foundations are typically used for smaller buildings with less load and on sites where the soil has sufficient bearing capacity near the surface. Common shallow foundations include spread footings, which support individual columns; strip footings, which run continuously under walls; combined footings, which handle multiple columns; mat or raft foundations, which are large slabs supporting entire buildings; and strap footings, which connect eccentric footings to balance loads.

Deep foundations are employed when the surface soil is not strong enough to support the structure, necessitating the transfer of loads to deeper, more stable soil or rock layers. Pile foundations, consisting of long, slender columns driven deep into the ground, are a prominent example, used for their ability to reach stable strata and provide support through end-bearing or friction. Other deep foundations include drilled shafts (or caissons), which are large, deep holes filled with concrete, and pier foundations, which are shorter and wider than piles, providing support in suitable soil conditions. Micropiles, small-diameter, high-strength piles, are increasingly popular for underpinning existing structures and in restricted access areas.

In addition to these primary categories, specialized foundations address unique construction challenges. Floating or compensated foundations balance the building load with the excavated soil weight, minimizing settlement on soft soils. Buoyancy raft foundations incorporate hollow structures to reduce weight and increase buoyancy, while grillage foundations use a network of beams to distribute heavy loads over a large area. Hybrid and innovative foundations, like cellular foundations and floating piles, combine elements of both shallow and deep foundations to meet specific needs, such as stabilizing slopes or constructing in challenging terrains.

Understanding the various types of structural foundations is essential for architects, engineers, and builders. Each foundation type offers distinct advantages and is selected based on the specific requirements of the construction project, ensuring a strong, stable, and enduring base for the building. This detailed exploration of foundation types provides insight into the fundamental principles of foundation construction and the considerations that guide the choice of the most appropriate foundation for any given project. For the purpose of this article we are going to limit the study of foundations to shallow foundations and the importance of soil testing and site Preparation

Types of Foundations : (Shallow Foundations)

1. Spread Footing (Isolated Footing):

Spread footing, also known as isolated footing, is one of the most common types of shallow foundations used in construction. It is specifically designed to support individual columns, distributing the load from the structure to the underlying soil. This type of foundation is particularly suitable for buildings where the loads are relatively light and the soil has adequate bearing capacity near the surface.

A spread footing typically consists of a concrete pad or slab that is larger than the base of the column it supports. The size of the footing is calculated to ensure that the pressure exerted on the soil does not exceed its bearing capacity. By spreading the load over a wider area, the footing helps to prevent excessive settlement and potential structural failures. The thickness of the footing is also carefully designed to withstand the stresses imposed by the column and the building loads.

Construction of spread footings involves several key steps. First, the site is excavated to the required depth, and the soil at the bottom of the excavation is leveled and compacted to provide a stable base. Formwork, typically made of wood or metal, is then set up to shape the concrete footing. Reinforcement bars (rebar) are placed within the formwork to enhance the footing’s strength and durability. Once the formwork and rebar are in place, concrete is poured and allowed to cure, forming a solid and robust foundation element.

Spread footings offer several advantages. They are relatively simple and cost-effective to construct compared to other types of foundations. This makes them an ideal choice for residential buildings, small commercial structures, and light industrial facilities. Additionally, they provide good load distribution and are effective in preventing differential settlement, where different parts of the building settle unevenly.

However, spread footings also have limitations. They are not suitable for all soil conditions, particularly in areas with highly compressible or expansive soils that may lead to uneven settlement. In such cases, alternative foundation types, such as deep foundations, may be more appropriate. Additionally, spread footings are generally used for structures with relatively low loads; for heavier buildings, more robust foundation solutions might be required.

In summary, spread footings are a fundamental and widely used type of shallow foundation in construction. They provide a practical and economical solution for supporting individual columns and distributing building loads to the soil. Understanding their design, construction process, and appropriate applications is crucial for ensuring the stability and longevity of structures built using this foundation method.

2. Strip Footing (Continuous Footing):

Strip footing, also known as continuous footing, is a type of shallow foundation commonly used in construction to support linear structures such as walls or rows of columns. This foundation type runs along the length of the load-bearing wall, distributing the weight of the structure evenly along the ground. Strip footings are particularly effective in supporting structures with long, continuous loads and are widely used in residential buildings, small commercial buildings, and light industrial facilities.

The primary function of a strip footing is to spread the load from the walls over a larger area of soil, thereby reducing the stress on the soil and preventing excessive settlement. The width of the strip footing is determined based on the load from the building and the bearing capacity of the soil. By distributing the load over a wider area, strip footings help ensure that the pressure on the soil remains within acceptable limits, thus maintaining the stability and integrity of the structure.

Construction of strip footings involves several important steps. Initially, the site is prepared by excavating trenches along the path of the load-bearing walls. The bottom of the trench is then leveled and compacted to provide a stable base. Formwork is set up along the sides of the trench to shape the concrete footing. Reinforcement bars, or rebar, are often placed within the formwork to increase the strength and durability of the footing. Once the formwork and reinforcement are in place, concrete is poured into the trench and allowed to cure, forming a continuous strip of concrete that supports the walls above.

Strip footings offer several advantages. They are relatively simple and cost-effective to construct, making them a popular choice for a wide range of building projects. They provide excellent load distribution for linear structures, ensuring that the walls are well-supported and stable. Additionally, strip footings can be adapted to various soil conditions, provided that the soil has sufficient bearing capacity and is properly compacted.

However, strip footings also have some limitations. They are not suitable for all soil types, especially in areas with highly compressible or expansive soils that can lead to uneven settlement. In such conditions, alternative foundation solutions, such as raft foundations or deep foundations, may be more appropriate. Additionally, strip footings are generally used for structures with relatively uniform and moderate loads; for heavier buildings or structures with significant point loads, more robust foundation systems may be required.

In summary, strip footings are a fundamental type of shallow foundation that provide effective support for load-bearing walls and linear structures. Their design and construction are straightforward, making them a practical and economical choice for many building projects. Understanding the principles behind strip footings, including their design criteria, construction process, and suitable applications, is essential for ensuring the stability and longevity of the structures they support.

3. Combined Footing:

Combined footing is a type of shallow foundation designed to support multiple columns, often when individual footings would overlap or when space constraints prevent the use of separate footings. This foundation type is particularly useful in situations where columns are closely spaced, or when columns are located near property lines, preventing the extension of individual footings beyond the site boundaries.

Combined footings can take various forms depending on the specific needs of the structure. The most common configurations are rectangular or trapezoidal. A rectangular combined footing is typically used when the loads from the columns are similar, while a trapezoidal footing is used when there is a significant difference in the loads, helping to achieve a more uniform distribution of stress on the soil.

The construction process for combined footings begins with site preparation, which involves excavating the area where the footing will be placed. The bottom of the excavation is then leveled and compacted to provide a stable base. Formwork is constructed to shape the concrete footing, and reinforcement bars (rebar) are placed within the formwork to enhance the footing’s strength and durability. The rebar configuration is carefully designed to handle the bending moments and shear forces generated by the loads from the columns. Once the formwork and rebar are in place, concrete is poured and allowed to cure, forming a solid and continuous foundation that supports multiple columns.

One of the key advantages of combined footings is their ability to distribute loads from multiple columns over a larger area, reducing the stress on the soil and minimizing the risk of settlement. This makes them particularly effective in situations where soil conditions may not be ideal or where there are constraints on the size and placement of individual footings. Additionally, combined footings can help maintain structural stability in buildings with unevenly distributed loads by balancing the load more effectively across the foundation.

However, combined footings also have some limitations. They are generally more complex and expensive to design and construct than isolated footings due to the need for precise engineering and more extensive use of materials like concrete and steel reinforcement. The design of combined footings must account for the varying loads from different columns and ensure that the footing can handle the combined stress without failing. This requires careful analysis and planning by structural engineers to ensure the foundation is both safe and cost-effective.

In summary, combined footings are a versatile and effective type of shallow foundation used to support multiple columns, particularly in situations where space constraints or load distribution issues make individual footings impractical. By spreading the loads over a larger area, combined footings help ensure the stability and longevity of the structures they support. Understanding the principles, design considerations, and construction processes associated with combined footings is essential for creating reliable and durable foundations in complex building projects.

4. Mat (Raft) Foundation:

Mat foundation, also known as raft foundation, is a type of shallow foundation that provides support for an entire building or large sections of it by distributing the load over a large, continuous slab that covers the entire footprint of the structure. This method is particularly advantageous in conditions where the soil has a low bearing capacity, or when dealing with highly variable soil conditions, as it spreads the load more evenly compared to individual footings.

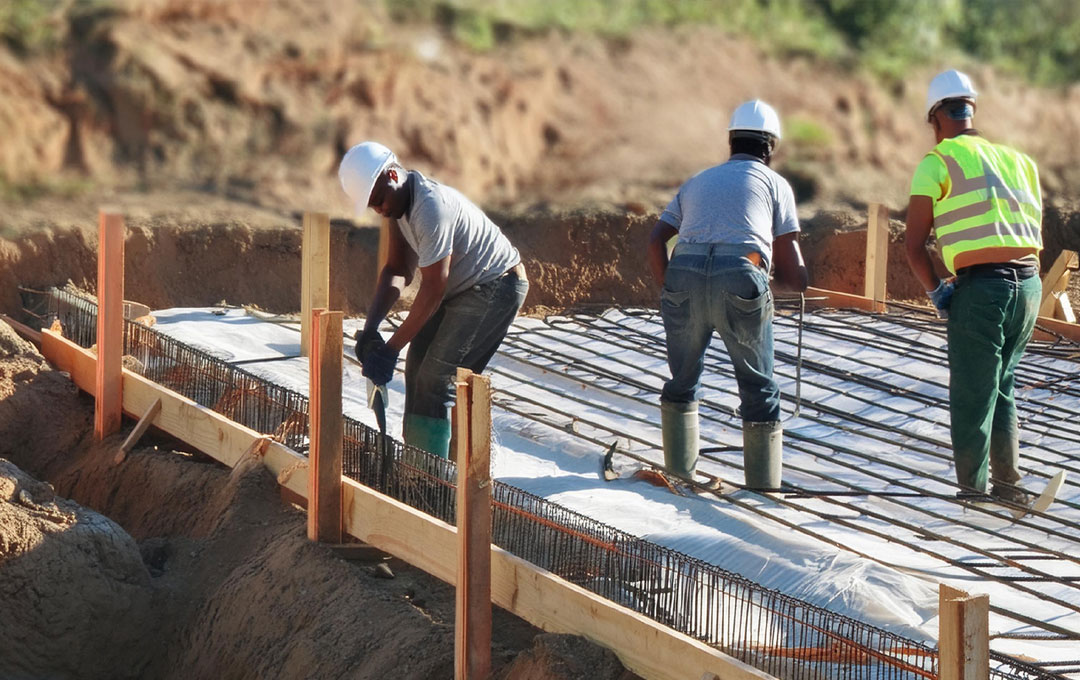

A mat foundation is essentially a thick slab of reinforced concrete that spans the area beneath the building. The slab is typically reinforced with a grid of steel bars (rebar) to enhance its strength and flexibility, allowing it to handle the various stresses and loads imposed by the structure above. The design of a mat foundation must consider the entire building’s weight, including live loads (e.g., occupants, furniture) and dead loads (e.g., structural components), ensuring that the foundation can support these loads without excessive settlement or deformation.

The construction process for a mat foundation begins with site preparation, which includes excavating the area to the required depth and ensuring a level, compacted base. This is followed by the installation of a waterproof membrane if needed, particularly in areas prone to high groundwater levels. Formwork is then set up to contain the concrete pour, and a complex grid of rebar is placed within the formwork to reinforce the slab. The rebar placement is critical, as it provides the tensile strength necessary to resist bending and cracking under load.

Once the formwork and reinforcement are in place, concrete is poured in a continuous operation to avoid creating joints that could weaken the foundation. The concrete is carefully monitored and cured to ensure it achieves the required strength. The result is a robust, monolithic slab that distributes the load of the building evenly across the entire foundation area.

Mat foundations offer several significant advantages. They provide excellent load distribution, which is especially beneficial for large buildings or those with uneven load distributions. This type of foundation is also effective in reducing differential settlement, where different parts of the building settle at different rates, potentially causing structural damage. Additionally, mat foundations are well-suited for basements, as the large slab can also serve as the floor of the basement, providing a solid and watertight base.

However, mat foundations also come with some challenges and limitations. They are generally more expensive and time-consuming to construct compared to other shallow foundations due to the large amounts of concrete and reinforcement required. The design and construction process requires careful planning and execution to ensure the foundation’s integrity. Moreover, mat foundations may not be suitable for all soil conditions, particularly in areas with very soft or highly compressible soils, where deep foundations like piles might be a better option.

In summary, mat foundations are a robust and effective type of shallow foundation that supports entire buildings by distributing loads over a large, continuous slab. Their ability to handle significant loads and reduce differential settlement makes them ideal for large structures and challenging soil conditions. Understanding the design principles, construction techniques, and appropriate applications of mat foundations is essential for ensuring the stability and longevity of the buildings they support.

5. Strap (Cantilever) Footing:

Strap footing, also known as cantilever footing, is a type of shallow foundation used when columns are positioned near property lines or close to each other, preventing the use of individual spread footings. This foundation type involves connecting an eccentrically loaded footing (one that is not centered under the load) to an interior footing with a concrete strap or beam, effectively balancing the load and preventing the foundation from tipping or rotating.

The main function of strap footings is to distribute the eccentric load from a column located near the edge of a property or building to a more centrally located column. The concrete strap acts as a lever, transferring part of the load from the edge column to the interior column, thus balancing the forces and reducing the risk of uneven settlement. This method allows for the efficient use of space and materials while ensuring the stability of the structure.

The construction process for strap footings begins with site preparation, including the excavation of trenches for both the edge and interior footings. The soil at the bottom of these trenches is leveled and compacted to provide a stable base. Formwork is then erected to shape the footings and the strap, and reinforcement bars (rebar) are placed within the formwork to provide additional strength. The rebar configuration is critical, as it must be designed to handle the bending moments and shear forces generated by the eccentric loads.

Once the formwork and rebar are in place, concrete is poured into the trenches and formwork, creating a continuous footing and strap system. The concrete must be carefully cured to achieve the necessary strength and ensure the integrity of the foundation. The resulting structure is a robust, interconnected system that effectively distributes loads from the columns to the underlying soil.

Strap footings offer several advantages. They are particularly useful in urban environments or constrained sites where property lines and existing structures limit the placement of traditional footings. By connecting footings with a strap, this foundation type efficiently utilizes available space and materials while maintaining structural stability. Additionally, strap footings can help reduce differential settlement by ensuring that loads are more evenly distributed across the foundation.

However, strap footings also have limitations. They are generally more complex to design and construct than isolated footings, requiring precise engineering and careful placement of reinforcement. The design must account for the eccentric loads and ensure that the strap can adequately transfer these loads to the interior footing without excessive bending or shear. This often requires a more detailed analysis and higher construction costs compared to simpler foundation types.

In summary, strap footings, or cantilever footings, are an effective solution for supporting columns near property lines or in tight spaces. By connecting an eccentrically loaded footing to an interior footing with a concrete strap, this foundation type balances loads and prevents tipping or rotation, ensuring the stability and longevity of the structure. Understanding the principles, design considerations, and construction techniques for strap footings is essential for effectively utilizing this foundation method in challenging site conditions.

The Importance of Soil Testing For Foundation Works

Before any foundation work begins, it’s crucial to understand the soil on which the building will stand. Soil testing helps determine the soil’s properties and suitability for supporting a structure. Soil testing is a critical step in the design and construction of shallow foundations, as it provides essential information about the soil’s properties and its suitability to support the proposed structure. Conducting thorough soil testing before construction begins helps ensure that the foundation will be stable, safe, and long-lasting. Here, we explore the importance of soil testing in detail.

Firstly, soil testing helps determine the bearing capacity of the soil, which is the ability of the soil to support the loads imposed by the structure. Different types of soil have varying load-bearing capacities; for instance, dense gravel and sandy soils typically have high bearing capacities, whereas clay and loose sandy soils may have lower capacities. Understanding the soil’s bearing capacity is crucial for designing a foundation that distributes the load effectively, preventing excessive settlement or even potential structural failure.

Another important aspect of soil testing is identifying the soil composition, which includes the proportions of sand, silt, clay, and organic matter. The composition of the soil influences its behavior under load and its reaction to environmental changes. For example, clay soils can expand and contract significantly with changes in moisture content, leading to ground movement that can damage the foundation. Knowing the soil composition allows engineers to design foundations that can accommodate or mitigate these movements.

Soil testing also reveals the soil’s moisture content and groundwater conditions. High groundwater levels can pose challenges for foundation construction, as they may lead to water infiltration and reduce the soil’s strength. By identifying these conditions early, appropriate measures, such as drainage systems or waterproofing techniques, can be incorporated into the foundation design to ensure long-term stability and durability.

In addition to the physical properties of the soil, soil testing can uncover potential problems such as the presence of contaminants or unstable layers. Contaminated soils can pose health risks and environmental hazards, necessitating remediation before construction can proceed. Similarly, unstable layers, such as loose fill or expansive soils, may require special foundation techniques or soil stabilization methods to ensure the foundation’s integrity.

One of the key benefits of soil testing is the ability to tailor the foundation design to the specific site conditions. By understanding the unique characteristics of the soil, engineers can choose the most suitable foundation type, whether it be a spread footing, strip footing, combined footing, or another type. This customization helps optimize the foundation’s performance, ensuring that it provides adequate support for the structure while minimizing construction costs and potential issues.

Finally, soil testing can help prevent costly construction delays and repairs. Unanticipated soil conditions discovered during construction can lead to significant delays and increased costs as the design may need to be adjusted on the fly. By conducting comprehensive soil testing before construction begins, potential issues can be identified and addressed in the planning phase, resulting in a smoother and more efficient construction process.

In summary, soil testing is an indispensable component of the foundation design process. It provides critical information about the soil’s bearing capacity, composition, moisture content, and potential issues, enabling engineers to design safe, stable, and cost-effective foundations. Thorough soil testing not only ensures the long-term performance of the structure but also helps avoid unexpected challenges and expenses during construction, making it a fundamental practice for any successful building project.

Site Preparation For Foundation Works

Site preparation is a crucial phase in the construction of shallow foundations, laying the groundwork for a stable and durable foundation system. This process involves a series of steps that ensure the construction site is ready for the installation of footings or slabs, providing a solid base for the building above. Here, we delve into the key aspects of site preparation in the context of shallow foundations.

The first step in site preparation is clearing the construction site of any obstructions. This includes removing vegetation, debris, and existing structures that may interfere with the foundation installation. Clearing the site creates a clean and open area for construction activities to proceed smoothly, allowing for proper access and maneuverability of equipment and materials.

Once the site is cleared, grading the land becomes essential. Grading involves shaping and leveling the ground to achieve the desired slope and elevation according to the building plans. Proper grading ensures that water drains away from the foundation, preventing water accumulation that could lead to moisture-related issues such as erosion, dampness, or foundation damage. It also helps create a uniform and stable surface for the foundation to rest upon, reducing the risk of settlement or uneven settling of the structure.

After grading, compaction of the soil is necessary to increase its density and strength. Compaction involves using heavy machinery, such as rollers or compactors, to compress the soil layers, removing air voids and improving load-bearing capacity. Compacted soil provides a solid foundation for the footings or slabs, minimizing the risk of settlement and ensuring structural stability over time.

In addition to grading and compaction, marking the foundation layout is a critical step in site preparation. This involves accurately measuring and marking the locations and dimensions of the footings or slabs according to the building plans. Properly marked layouts help ensure that the foundation elements are placed correctly, aligned with the structural requirements, and comply with local building codes and regulations.

Depending on the site conditions and project requirements, other site preparation activities may include soil testing and improvement. Soil testing helps assess the soil’s properties, including its bearing capacity, moisture content, and compaction characteristics, providing valuable information for foundation design and construction. Soil improvement techniques, such as soil stabilization or reinforcement, may be employed to enhance the soil’s strength and stability, particularly in areas with challenging soil conditions.

Overall, site preparation plays a crucial role in establishing a strong and resilient foundation for buildings. By clearing the site, grading the land, compacting the soil, and marking the foundation layout, construction teams can create a stable and level surface that supports the structure above. Proper site preparation not only ensures the structural integrity of the foundation but also contributes to the long-term performance and durability of the entire building.

In conclusion

Shallow foundations are fundamental components in the construction of many structures, providing essential support by distributing loads directly to the soil near the surface. This type of foundation is particularly suitable for buildings with moderate loads and stable soil conditions. Understanding the various types of shallow foundations, such as spread footings, strip footings, combined footings, mat foundations, and strap footings, is crucial for selecting the right foundation for specific project requirements. Each type offers unique advantages, making it possible to adapt to a wide range of building needs and site conditions.

The importance of soil testing in the context of shallow foundations cannot be overstated. Soil testing provides critical insights into the soil’s bearing capacity, composition, moisture content, and potential issues such as contamination or instability. This information is vital for designing foundations that are safe, stable, and capable of supporting the intended loads without excessive settlement or failure. By conducting thorough soil testing before construction begins, engineers can tailor the foundation design to the specific characteristics of the soil, ensuring a more reliable and durable structure.

Site preparation is another essential aspect of successful shallow foundation construction. This process involves clearing the site, grading the land, compacting the soil, and accurately marking the foundation layout. Proper site preparation creates a stable, level base that enhances the foundation’s performance and longevity. It also facilitates efficient construction operations, reduces the risk of delays or complications, and ensures compliance with building codes and regulations. By investing in meticulous site preparation, construction teams can lay the groundwork for a robust and enduring foundation, ultimately contributing to the overall success and integrity of the building project.

Together, a comprehensive understanding of shallow foundations, the critical role of soil testing, and the importance of meticulous site preparation form the bedrock of effective and resilient construction practices. These elements work in tandem to ensure that structures are built on solid foundations, capable of withstanding the test of time and the forces of nature, providing safety and stability for their occupants
